CTF对抗-DEFCON33-Quals nfuncs angr➕unicorn 快速自动化逆向

推荐 原创

周杰伦

文章分类CTF对抗阅读数 : 58阅读时长 : 9分钟


【CTF对抗-DEFCON33-Quals nfuncs angr➕unicorn 快速自动化逆向】此文章归类为：CTF对抗。

DEFCON33-Quals nfuncs

这道题给了3g的附件，超出了PE大小上限

[64 bit - what is the maximum size of a PE file on 64-bit Windows? - Stack Overflow]

程序不能运行，程序存在大量的smc操作，需要输入正确的输入(8字节)，然后计算出key参与到smc的运算中，然后call到smc之后的代码，如此循环往复。

同一个附件分为三关：

  1. RE
  2. RE
  3. Forensics

RE1-PNG

第一关将所有的解拼出来PNG，flag在PNG里。

采用angr+unicorn的方案，angr求解输入，unicorn去跑smc

经过我的不断优化，跑出第一关的图片用时间:

从5.5h→1.5h→26min, 速度实现质的飞跃

angr

一共有三种约束：

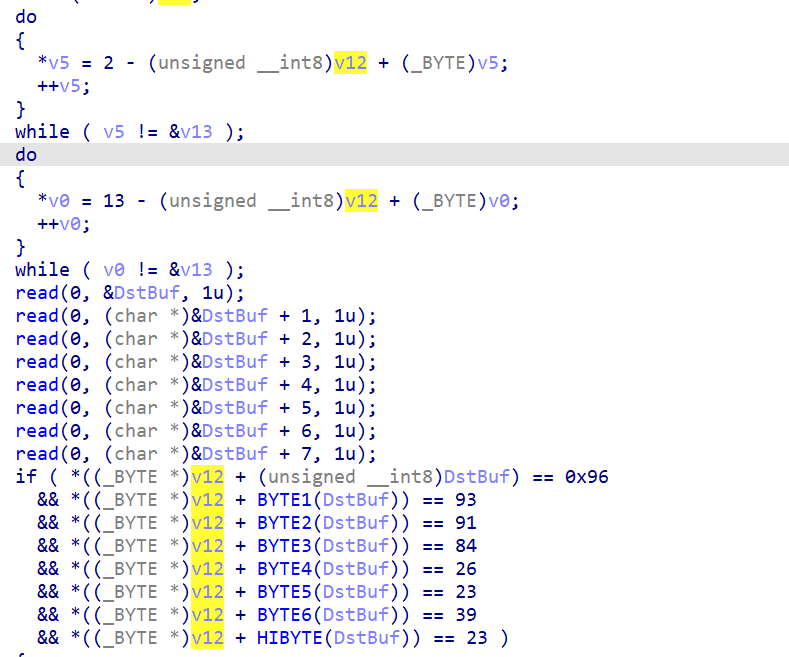

  1. LUT[input[i]] == num

    LUT[index] = (index + 13) % 256


  2. 位运算

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188
    189
    190
    191
    192
    193
    194
    195
    196
    197
    198
    199
    200
    201
    202
    203
    204
    205
    206
    207
    208
    209
    210
    211
    212
    213
    214
    215
    216
    217
    218
    219
    220
    221
    222
    223
    224
    225
    226
    227
    228
    229
    230
    231
    232
    233
    234
    235
    236
    237
    238
    239
    240
    241
    242
    243
    244
    245
    246
    247
    248
    249
    250
    251
    252
    253
    254
    255
    256
    257
    258
    259
    read(0, DstBuf, 1u);
      read(0, &DstBuf[1], 1u);
      read(0, &DstBuf[2], 1u);
      read(0, &DstBuf[3], 1u);
      read(0, &DstBuf[4], 1u);
      read(0, &DstBuf[5], 1u);
      read(0, &DstBuf[6], 1u);
      read(0, &DstBuf[7], 1u);
      v0 = 32 * (DstBuf[0] & 1);
      if ( (DstBuf[0] & 2) != 0 )
        v0 = (32 * (DstBuf[0] & 1)) | 0x40;
      if ( (DstBuf[0] & 4) != 0 )
        v0 |= 0x80u;
      if ( (DstBuf[0] & 8) != 0 )
        v0 |= 0x10u;
      if ( (DstBuf[0] & 0x10) != 0 )
        v0 |= 1u;
      if ( (DstBuf[0] & 0x20) != 0 )
        v0 |= 2u;
      if ( (DstBuf[0] & 0x40) != 0 )
        v0 |= 8u;
      if ( DstBuf[0] < 0 )
        v0 |= 4u;
      v1 = v0 & 0xDF;
      if ( (DstBuf[1] & 1) != 0 )
        v1 = v0 | 0x20;
      v2 = v1 | 0x40;
      v3 = v1 & 0xBF;
      if ( (DstBuf[1] & 2) != 0 )
        v3 = v2;
      v4 = v3 | 0x80;
      v5 = v3 & 0x7F;
      if ( (DstBuf[1] & 4) != 0 )
        v5 = v4;
      v6 = v5 | 0x10;
      v7 = v5 & 0xEF;
      if ( (DstBuf[1] & 8) != 0 )
        v7 = v6;
      v8 = v7 | 1;
      v9 = v7 & 0xFE;
      if ( (DstBuf[1] & 0x10) != 0 )
        v9 = v8;
      v10 = v9 | 2;
      v11 = v9 & 0xFD;
      if ( (DstBuf[1] & 0x20) != 0 )
        v11 = v10;
      v12 = v11 | 8;
      v13 = v11 & 0xF7;
      if ( (DstBuf[1] & 0x40) != 0 )
        v13 = v12;
      v14 = v13 | 4;
      v15 = v13 & 0xFB;
      if ( DstBuf[1] < 0 )
        v15 = v14;
      v16 = v15 & 0xDF;
      if ( (DstBuf[2] & 1) != 0 )
        v16 = v15 | 0x20;
      v17 = v16 | 0x40;
      v18 = v16 & 0xBF;
      if ( (DstBuf[2] & 2) != 0 )
        v18 = v17;
      v19 = v18 | 0x80;
      v20 = v18 & 0x7F;
      if ( (DstBuf[2] & 4) != 0 )
        v20 = v19;
      v21 = v20 | 0x10;
      v22 = v20 & 0xEF;
      if ( (DstBuf[2] & 8) != 0 )
        v22 = v21;
      v23 = v22 | 1;
      v24 = v22 & 0xFE;
      if ( (DstBuf[2] & 0x10) != 0 )
        v24 = v23;
      v25 = v24 | 2;
      v26 = v24 & 0xFD;
      if ( (DstBuf[2] & 0x20) != 0 )
        v26 = v25;
      v27 = v26 | 8;
      v28 = v26 & 0xF7;
      if ( (DstBuf[2] & 0x40) != 0 )
        v28 = v27;
      v29 = v28 | 4;
      v30 = v28 & 0xFB;
      if ( DstBuf[2] < 0 )
        v30 = v29;
      v31 = v30 & 0xDF;
      if ( (DstBuf[3] & 1) != 0 )
        v31 = v30 | 0x20;
      v32 = v31 | 0x40;
      v33 = v31 & 0xBF;
      if ( (DstBuf[3] & 2) != 0 )
        v33 = v32;
      v34 = v33 | 0x80;
      v35 = v33 & 0x7F;
      if ( (DstBuf[3] & 4) != 0 )
        v35 = v34;
      v36 = v35 | 0x10;
      v37 = v35 & 0xEF;
      if ( (DstBuf[3] & 8) != 0 )
        v37 = v36;
      v38 = v37 | 1;
      v39 = v37 & 0xFE;
      if ( (DstBuf[3] & 0x10) != 0 )
        v39 = v38;
      v40 = v39 | 2;
      v41 = v39 & 0xFD;
      if ( (DstBuf[3] & 0x20) != 0 )
        v41 = v40;
      v42 = v41 | 8;
      v43 = v41 & 0xF7;
      if ( (DstBuf[3] & 0x40) != 0 )
        v43 = v42;
      v44 = v43 | 4;
      v45 = v43 & 0xFB;
      if ( DstBuf[3] < 0 )
        v45 = v44;
      v46 = v45 & 0xDF;
      if ( (DstBuf[4] & 1) != 0 )
        v46 = v45 | 0x20;
      v47 = v46 | 0x40;
      v48 = v46 & 0xBF;
      if ( (DstBuf[4] & 2) != 0 )
        v48 = v47;
      v49 = v48 | 0x80;
      v50 = v48 & 0x7F;
      if ( (DstBuf[4] & 4) != 0 )
        v50 = v49;
      v51 = v50 | 0x10;
      v52 = v50 & 0xEF;
      if ( (DstBuf[4] & 8) != 0 )
        v52 = v51;
      v53 = v52 | 1;
      v54 = v52 & 0xFE;
      if ( (DstBuf[4] & 0x10) != 0 )
        v54 = v53;
      v55 = v54 | 2;
      v56 = v54 & 0xFD;
      if ( (DstBuf[4] & 0x20) != 0 )
        v56 = v55;
      v57 = v56 | 8;
      v58 = v56 & 0xF7;
      if ( (DstBuf[4] & 0x40) != 0 )
        v58 = v57;
      v59 = v58 | 4;
      v60 = v58 & 0xFB;
      if ( DstBuf[4] < 0 )
        v60 = v59;
      v61 = v60 & 0xDF;
      if ( (DstBuf[5] & 1) != 0 )
        v61 = v60 | 0x20;
      v62 = v61 | 0x40;
      v63 = v61 & 0xBF;
      if ( (DstBuf[5] & 2) != 0 )
        v63 = v62;
      v64 = v63 | 0x80;
      v65 = v63 & 0x7F;
      if ( (DstBuf[5] & 4) != 0 )
        v65 = v64;
      v66 = v65 | 0x10;
      v67 = v65 & 0xEF;
      if ( (DstBuf[5] & 8) != 0 )
        v67 = v66;
      v68 = v67 | 1;
      v69 = v67 & 0xFE;
      if ( (DstBuf[5] & 0x10) != 0 )
        v69 = v68;
      v70 = v69 | 2;
      v71 = v69 & 0xFD;
      if ( (DstBuf[5] & 0x20) != 0 )
        v71 = v70;
      v72 = v71 | 8;
      v73 = v71 & 0xF7;
      if ( (DstBuf[5] & 0x40) != 0 )
        v73 = v72;
      v74 = v73 | 4;
      v75 = v73 & 0xFB;
      if ( DstBuf[5] < 0 )
        v75 = v74;
      v76 = v75 & 0xDF;
      if ( (DstBuf[6] & 1) != 0 )
        v76 = v75 | 0x20;
      v77 = v76 | 0x40;
      v78 = v76 & 0xBF;
      if ( (DstBuf[6] & 2) != 0 )
        v78 = v77;
      v79 = v78 | 0x80;
      v80 = v78 & 0x7F;
      if ( (DstBuf[6] & 4) != 0 )
        v80 = v79;
      v81 = v80 | 0x10;
      v82 = v80 & 0xEF;
      if ( (DstBuf[6] & 8) != 0 )
        v82 = v81;
      v83 = v82 | 1;
      v84 = v82 & 0xFE;
      if ( (DstBuf[6] & 0x10) != 0 )
        v84 = v83;
      v85 = v84 | 2;
      v86 = v84 & 0xFD;
      if ( (DstBuf[6] & 0x20) != 0 )
        v86 = v85;
      v87 = v86 | 8;
      v88 = v86 & 0xF7;
      if ( (DstBuf[6] & 0x40) != 0 )
        v88 = v87;
      v89 = v88 | 4;
      v90 = v88 & 0xFB;
      if ( DstBuf[6] < 0 )
        v90 = v89;
      v91 = v90 & 0xDF;
      if ( (DstBuf[7] & 1) != 0 )
        v91 = v90 | 0x20;
      v92 = v91 | 0x40;
      v93 = v91 & 0xBF;
      if ( (DstBuf[7] & 2) != 0 )
        v93 = v92;
      v94 = v93 | 0x80;
      v95 = v93 & 0x7F;
      if ( (DstBuf[7] & 4) != 0 )
        v95 = v94;
      v96 = v95 | 0x10;
      v97 = v95 & 0xEF;
      if ( (DstBuf[7] & 8) != 0 )
        v97 = v96;
      v98 = v97 | 1;
      v99 = v97 & 0xFE;
      if ( (DstBuf[7] & 0x10) != 0 )
        v99 = v98;
      v100 = v99 | 2;
      v101 = v99 & 0xFD;
      if ( (DstBuf[7] & 0x20) != 0 )
        v101 = v100;
      v102 = v101 | 8;
      v103 = v101 & 0xF7;
      if ( (DstBuf[7] & 0x40) != 0 )
        v103 = v102;
      v104 = v103 | 4;
      v105 = v103 & 0xFB;
      if ( DstBuf[7] < 0 )
        v105 = v104;
      if ( v0 == -77 && !(v45 | (unsigned __int8)(v30 | v15)) && v60 == 32 && v75 == 107 && v90 == 73 && v105 == -24 )
      {
        strcpy(v108, ":)");
        puts(v108);
        v110[0] = 0LL;
        v110[1] = 0LL;
        sub_14003A1C0(v110, *(_QWORD *)DstBuf + 2815032436LL);
        VirtualProtect(sub_140055A50, 0x17960uLL, 0x40u, &v109);
        for ( i = 0LL; i != 96608; ++i )
          *(_BYTE *)(i + 0x140055A50LL) ^= *((_BYTE *)v110 + (i & 0xF));
        VirtualProtect(sub_140055A50, 0x17960uLL, v109, 0LL);
        return sub_140055A50();
      }
      else
      {
        strcpy(Buffer, ":(");
        return puts(Buffer);
      }
    }

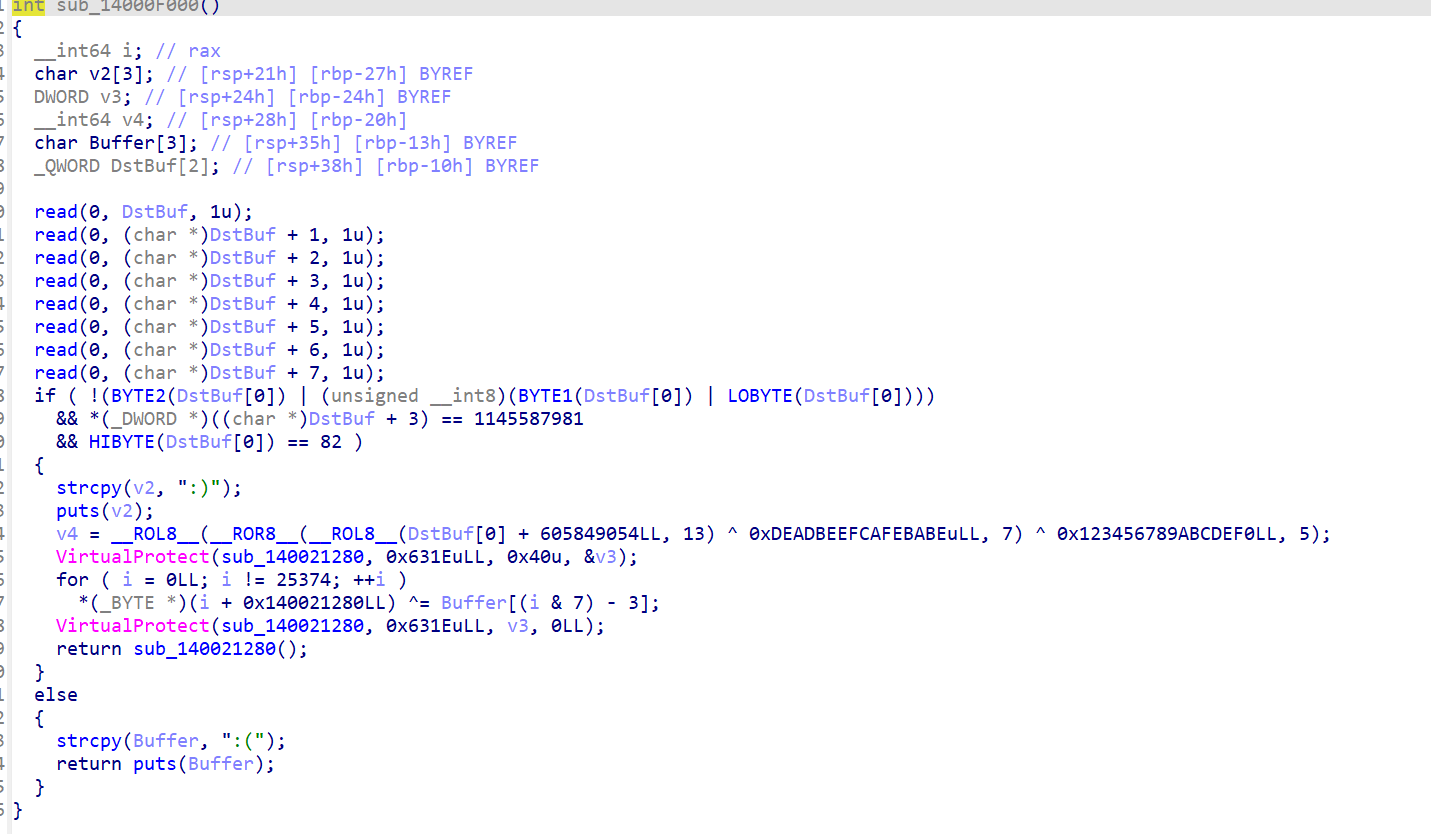

  3. 直接判断


其中2、3使用angr都可以秒解

angr 优化

LUT我开了unicorn, 在explore使用指定avoid地址，把求解的函数切片，指定backend 为 blob , 避免每次都load 3Gb的文件。在我的i7-14650HX , 主频为2.2GHz上，求解需要20s。这个速度在求解第一关还行，倒是到了第二关就捉襟见肘了。因此还需要继续优化。

于是对LUT的情况添加静态求解的部分：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
def collect_cmp_value(base_addr):
        md = Cs(CS_ARCH_X86, CS_MODE_64)
        md.detail = True
        cmps = []
        for i in md.disasm(func_code, base_addr):

            if i.mnemonic == 'cmp':
                # print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")
                op2 =  i.op_str.split(',')[1].strip()
                if i.operands[1].type == X86_OP_IMM :
                    op2 = int(op2, 16)
                    if op2 < 0x100:
                        # print(f"op2: {op2}")
                        cmps.append(op2)
            if i.mnemonic == 'test':
                cmps.append(0)
            if len(cmps) == 8:
                break

这样对99%的LUT的都可以秒解，并没有处理存在AND的情况，处理AND的情况需要模拟一个简单的污点传播，有点小麻烦，再加上这种情况很少，索性就退回到angr求解。

angr部分代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
import angr
import claripy
import io
from angr.calling_conventions import SimCCMicrosoftAMD64
from angr.errors import SimProcedureError
from capstone import *
import archinfo
from capstone.x86_const import *

def rva_to_foa(addr):
    return addr - 0x140001000 + 0x400

def get_file_slice(file_path, start, size):
    start = rva_to_foa(start)
    with open(file_path, 'rb') as f:
        f.seek(start)
        return f.read(size)


def store_ans(ans):
    with open("all-ans.bin",'a+b') as f1:
        # print("write all-ans")
        print(ans)
        f1.write(ans)
        f1.flush()
    with open('last-ans.bin','wb') as f:
        f.write(ans)

# last_read_return_address = None

is_lut = False

def find_ans(FUN_VA, file_path='nfuncs1.exe'):
    global is_lut
    input_bytes = []
    class ReadHook(angr.SimProcedure):
        def run(self, fd, buf, cnt):
            global last_read_return_address
            fd = self.state.solver.eval(fd)
            cnt = self.state.solver.eval(cnt)
            target_addr = self.state.solver.eval(buf)
            if fd != 0 or cnt != 1:
                print(f'[!] Unexpected read: fd {fd}, count {cnt}')

            # if len(input_bytes) == 0:
            #      for i in range(256):
            #         self.state.memory.store(target_addr-0x108 + i , (i+13) % 256, 8, endness=archinfo.Endness.LE)

            sym =  claripy.BVS(f"input_{len(input_bytes)}", 8)
            input_bytes.append(sym)

            self.state.memory.store(target_addr, sym)
            # print(f"[+] Hooked: wrote symbolic byte to {hex(target_addr)}")
            # rip = self.state.solver.eval(self.state.memory.load(self.state.regs.rsp,8,endness=archinfo.Endness.LE))
            # last_read_return_address = rip
            # print(f"[+] Hooked: rip {hex(rip)}")
            value  = self.state.solver.eval(self.state.memory.load(target_addr-0x108, 1),cast_to=int)
            if value == 13 + len(input_bytes) - 1:
                is_lut = True
            else:
                is_lut = False

            # print(f"[+] Hooked: value {hex(value)}")
            if len(input_bytes) == 8 and is_lut:
                # print("is_lut")
                cmps = collect_cmp_value(FUN_VA)
                if len(cmps) == 8: # nothing i can do
                    for i, target in enumerate(cmps):
                        # v12_expr = (index + 13) % 256
                        # print(hex(target))
                        self.state.solver.add(input_bytes[i] == target - 13)
                    # state.solver.add((input_bytes[i] + 13) % 256 == target)




    class VirtualProtectHook(angr.SimProcedure):
        def run(self, lpAddress, dwSize, flNewProtect, lpflOldProtect):
            addr = self.state.solver.eval(lpAddress)
            size = self.state.solver.eval(dwSize)
            prot = self.state.solver.eval(flNewProtect)

            print(f"[+] Hooked VirtualProtect:")
            print(f"    -> Address: {hex(addr)}")
            print(f"    -> Size   : {hex(size)}")
            print(f"    -> NewProt: {hex(prot)}")

            return claripy.BVV(1, self.state.arch.bits)

    class PutsHook(angr.SimProcedure):
        def run(self,buf):
            str_address = self.state.solver.eval(buf)
            s = self.state.solver.eval(self.state.memory.load(str_address,3),cast_to=bytes)
            print("input:",s) # b':)\x00' or b':(\x00'
            if s == b':(\x00':
                print("[!] Detected bad output ':(', killing path.")
            return claripy.BVV(1, self.state.arch.bits)

# FUN_VA =  0x14000F000
    func_code = get_file_slice(file_path, FUN_VA, 0x1000)

    def find_avoid_address(base_addr):
        md = Cs(CS_ARCH_X86, CS_MODE_64)
        find_address = None
        avoid_address = None
        for i in md.disasm(func_code, base_addr):

            # print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")
            if i.mnemonic == 'mov' and  '0x283a' in i.op_str:
                # print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")
                avoid_address = i.address
            if i.mnemonic == 'mov' and  '0x293a' in i.op_str:
                # print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")
                find_address = i.address
            if find_address and avoid_address:
                break
        return (find_address,avoid_address)

    def collect_cmp_value(base_addr):
        md = Cs(CS_ARCH_X86, CS_MODE_64)
        md.detail = True
        cmps = []
        for i in md.disasm(func_code, base_addr):

            if i.mnemonic == 'cmp':
                # print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")
                op2 =  i.op_str.split(',')[1].strip()
                if i.operands[1].type == X86_OP_IMM :
                    op2 = int(op2, 16)
                    if op2 < 0x100:
                        # print(f"op2: {op2}")
                        cmps.append(op2)
            if i.mnemonic == 'test':
                cmps.append(0)
            if len(cmps) == 8:
                break
        # assert len(cmps) == 8, f"[-] cmps length is not 8!"
        return cmps
        # exit()




    # print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")
    find_address,avoid_address = find_avoid_address(FUN_VA)
    # assert avoid_address != None, f"[-] Can't find avoid address!"

    proj = angr.Project(io.BytesIO(func_code), auto_load_libs=False, main_opts={
        'base_addr': FUN_VA,
        'backend': 'blob',
        'arch': 'X86_64',
        'entry_point': 0, # just avoid warnings
    }, )

    #handle IAT
    cc = SimCCMicrosoftAMD64(proj.arch)
    proj.hook(0x1A703AA78, ReadHook(cc=cc))
    proj.hook(0xDEADBEFF00, VirtualProtectHook(cc=cc))
    proj.hook(0x1A703AA50, angr.SIM_PROCEDURES['libc']['puts']())

    state = proj.factory.blank_state(addr=FUN_VA, add_options={
            angr.options.UNICORN,
            angr.options.ZERO_FILL_UNCONSTRAINED_MEMORY,
            angr.options.ZERO_FILL_UNCONSTRAINED_REGISTERS,
        }) # faster

    #manually process relocations
    #read(0)

    state.regs.rsp = claripy.BVV(0x7fffffffffe000, 64)  # 设个高地址

    state.regs.rdx = claripy.BVV(0x7fffffffffdfe8, 64)
    # state.memory.store(0x7fffffffffdfe8 - 0x108, claripy.BVV(0, 64))

    # 手动在栈顶写入一个“假的返回地址”，防止后面ret或call出问题
    state.memory.store(0x7fffffffffe000, claripy.BVV(0xdeadbeefdeadbeef, 64))

    state.memory.store(0x1A707D330, int.to_bytes(0x1A703AA78, 16, 'little'))
    #put()
    state.memory.store(0x1A707D320, int.to_bytes(0x1A703AA50, 16, 'little'))
    #virtualprotect()
    state.memory.store(0x1A71B2210, int.to_bytes(0xDEADBEFF00, 16, 'little'))

    simgr = proj.factory.simulation_manager(state)
    # simgr.use_technique(angr.exploration_techniques.Veritesting())
    simgr.explore(find=find_address,avoid_address=avoid_address)
    # print("start explore")
    # print(simgr)
    # print(simgr.errored)
    if simgr.found:
        found = simgr.found[0]
        # print("[+] Found a solution!")
        ans = found.solver.eval(claripy.Concat(*input_bytes),cast_to=bytes)
        print(ans)
        # print(found.step().regs.rip)
        # store_ans(ans)
        return ans

# find_ans(0x140001510, file_path='nfuncs_fast.exe')

unicorn

几个注意的点：

  1. unicorn几个函数的hook, hook read填入angr求出的解，hook vritualprotect 获取smc后的code
  2. emu.stop的时机选取， 这里定在了下一组smc的第一个read，这样有两个好处，第一保证本轮征程跑完，第二保证下一轮smc是对的

unicorn优化

只load一次，完成section映射。

只hook一次，测试表明不重载uc, 代码会越跑越慢。

这样的好处是快了，但是代码段大小很大，跑着跑着代码就崩了，报memory unmap的错误，这里我觉得就是申请空间太大了，实际上没有申请到这段内存。

但是可以大力出奇迹， 写个bat脚本重新运行，程序就可以照常运行。

unicorn部分的代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
import pefile
from unicorn import *
from unicorn.x86_const import *
from my_angr import find_ans, store_ans
import time
from capstone import *

# actually not so fast

# with open('last-ans.bin', 'rb') as f:
#     ANS = f.read()

# ans = bytearray(reversed(ANS))

PE_PATH = "nfuncs_fast.exe"

with open("checkpoint.txt", 'r') as f:
    FUN_VA = int(f.read(), 16)
    # print("FUN_VA:", hex(FUN_VA))

# FUN_VA = 0x140001510
STACK_ADDR = 0xDEADBEEF000
STACK_SIZE = 0x10000
CODE_EXEC_LIMIT = 0x10000
SMC_LIMIT = 0x40000

def store_checkpoint(addr):
     with open("checkpoint.txt",'w') as f:
            f.write(hex(addr))

def hook_instruction(uc, address, size, user_data):
            if address == 0xDEADBEEF100:
                addr = uc.reg_read(UC_X86_REG_RCX)
                size = uc.reg_read(UC_X86_REG_RDX)
                print(f"[+] Hooked VirtualProtect:")
                print(f"    -> Address: {hex(addr)}")
                print(f"    -> Size   : {hex(size)}")
                # print("before read")
                smcs[addr] = uc.mem_read(addr, size)
                # print("after read")

                uc.reg_write(UC_X86_REG_RIP, int.from_bytes(uc.mem_read(uc.reg_read(UC_X86_REG_RSP),8),"little"))
                uc.reg_write(UC_X86_REG_RSP, uc.reg_read(UC_X86_REG_RSP) + 8)
            elif address == 0x1A703AA78:
                # print("read() called")

                assert uc.reg_read(UC_X86_REG_RCX) == 0 and uc.reg_read(UC_X86_REG_R8) == 1
                if ans:
                    byte = ans.pop()
                    uc.mem_write(uc.reg_read(UC_X86_REG_RDX), bytes([byte]))
                    uc.reg_write(UC_X86_REG_RAX, 1)
                    uc.reg_write(UC_X86_REG_RIP, int.from_bytes(uc.mem_read(uc.reg_read(UC_X86_REG_RSP),8),"little"))
                    uc.reg_write(UC_X86_REG_RSP, uc.reg_read(UC_X86_REG_RSP) + 8)
                else:
                    print("input drained")
                    uc.emu_stop()
            elif address == 0x1A703AA50:
                # print("puts() called")
                uc.reg_write(UC_X86_REG_RIP, int.from_bytes(uc.mem_read(uc.reg_read(UC_X86_REG_RSP),8),"little"))
                uc.reg_write(UC_X86_REG_RSP, uc.reg_read(UC_X86_REG_RSP) + 8)


# print(len(pe.sections))
mu = Uc(UC_ARCH_X86,UC_MODE_64)

mu.mem_map(STACK_ADDR, STACK_SIZE)
mu.reg_write(UC_X86_REG_RSP, STACK_ADDR + STACK_SIZE // 2)
pe = pefile.PE(PE_PATH, fast_load=True)
base_address = pe.OPTIONAL_HEADER.ImageBase
for section in pe.sections:
    sectionName = section.Name.strip(b'\0')
    # if(sectionName == b'.text'):
    #     start = base_address + section.VirtualAddress
    #     size = section.Misc_VirtualSize
    #     mu.mem_map(FUN_VA &~ 0xfff,SMC_LIMIT*2)
    #     mu.mem_write(FUN_VA,section.get_data()[FUN_VA-start:FUN_VA-start+SMC_LIMIT])
    #     print(f"[+] Mapped {sectionName} at {hex(start)} ({hex(size)})")
    # else:
    start = base_address + section.VirtualAddress
    size = section.Misc_VirtualSize
    mu.mem_map(start,(size + 0xfff) &~ 0xfff)
    mu.mem_write(start,section.get_data())
    print(f"[+] Mapped {sectionName} at {hex(start)} ({hex(size)})")
    #register hook
mu.hook_add(UC_HOOK_CODE, hook_instruction)

mu.mem_write(0x1A71B2210, int.to_bytes(0xDEADBEEF100, 16, 'little'))

with open(PE_PATH, 'r+b') as f:
    while True:
        # try:

            # code = mu.mem_read(FUN_VA,SMC_LIMIT)
            # print(hex(len(code)))
            # md = Cs(CS_ARCH_X86, CS_MODE_64)
            # for i in md.disasm(code, FUN_VA):
            #     print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")

            print("FUN_VA:", hex(FUN_VA))
            ANS = find_ans(FUN_VA,file_path=PE_PATH)
            ans = bytearray(reversed(ANS))
            smcs = {}


            #emulation start
            mu.emu_start(FUN_VA, FUN_VA + CODE_EXEC_LIMIT)

            for addr, data in smcs.items():
                print(f"[+] Committing changes to {hex(addr)} ({hex(len(data))})")
                for section in pe.sections:
                    sectionName = section.Name.strip(b'\0')
                    if(sectionName == b'.text'):
                        start = base_address + section.VirtualAddress
                        size = section.Misc_VirtualSize
                        # if addr >= start and addr < start + size:
                        #     print(f'Committing code changes at {addr:#x}')
                            # print(section.PointerToRawData)

                        f.seek(section.PointerToRawData + addr - start)
                        f.write(data)
                        # next_code = section.get_data()[addr-start:addr-start+SMC_LIMIT]
                        # mu.mem_unmap(FUN_VA &~ 0xfff, SMC_LIMIT*4)
                        # mu.mem_map(addr &~ 0xfff, SMC_LIMIT*2)
                        # mu.mem_write(addr, next_code)
                        # len_data = len(data)
                        # next_addr = addr + len_data
                        # print(hex(next_addr),  hex(len_data))
                        # mu.mem_write(next_addr,section.get_data()[next_addr-start:SMC_LIMIT * 2 - len_data])
                        # mu.mem_write(start,section.get_data())
                        break
                FUN_VA = addr
            store_ans(ANS)
            store_checkpoint(addr)

    # except Exception as e:
    #     end_time = time.time()
    #     print(f"总耗时：{end_time - start_time:.2f} 秒")
    #     print(f'[!] Unicorn error: {e}')
    #     break

flag{kitty_kitty_on_the_wall_439xb8q@}


RE2-MP4

第二关将所有的解拼出来MP4，flag在MP4里。

第二关主要考察速度，前面我们已经优化的足够好了。

第二关相较于第一关，添加了rc4加密，只需要添加求解部分就可以了

unicorn

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
import pefile
from unicorn import *
from unicorn.x86_const import *
from my_angr_2 import get_file_slice, find_ans, store_ans
from capstone import *
from capstone.x86_const import *
from decrypted import decrypt

# with open('last-ans.bin', 'rb') as f:
#     ANS = f.read()

# ans = bytearray(reversed(ANS))

PE_PATH = "nfuncs_fast.exe"
# #0x193c22610 #0x17dcd166e
# FUN_VA = 0x153022570 #0x149C8CA50 #140001510

with open("checkpoint.txt", 'r') as f:
    FUN_VA = int(f.read(), 16)

#0x146e3f760

STACK_ADDR = 0xDEADBEEF000
STACK_SIZE = 0x10000
CODE_EXEC_LIMIT = 0x1000

ans_address = None
ANS = None

def store_checkpoint(addr):
     with open("checkpoint.txt",'w') as f:
            f.write(hex(addr))

def find_key_enc(FUN_VA, file_path):
    md = Cs(CS_ARCH_X86, CS_MODE_64)
    md.detail = True
    func_code = get_file_slice(file_path, FUN_VA, 0x1000)
    for i in md.disasm(func_code, FUN_VA):
        # print(f"0x{i.address:x}:\t{i.mnemonic}\t{i.op_str}")
        # find key mov rax, key
        if i.mnemonic == 'movabs' and 'rax' in i.op_str and '0x' in i.op_str:
            key = i.op_str.split(',')[1].strip()
            key = int(key, 16)
            # print(key)
            return key

def hook_instruction(uc, address, size, user_data):
    global ans_address
    global ANS
    if address == 0xDEADBEEF100:
        addr = uc.reg_read(UC_X86_REG_RCX)
        size = uc.reg_read(UC_X86_REG_RDX)
        print(f"[+] Hooked VirtualProtect:")
        print(f"    -> Address: {hex(addr)}")
        print(f"    -> Size   : {hex(size)}")
        smcs[addr] = uc.mem_read(addr, size)
        # for addr, data in smcs.items():
        #     # print(f"[+] Committing changes to {hex(addr)} ({hex(len(data))})")
        #     print(data[:8])
        uc.reg_write(UC_X86_REG_RIP, int.from_bytes(uc.mem_read(uc.reg_read(UC_X86_REG_RSP),8),"little"))
        uc.reg_write(UC_X86_REG_RSP, uc.reg_read(UC_X86_REG_RSP) + 8)
    elif address == 0x1A703AA78:
        # print("read() called")

        assert uc.reg_read(UC_X86_REG_RCX) == 0 and uc.reg_read(UC_X86_REG_R8) == 1
        if ans:
            byte = ans.pop()
            ans_address = uc.reg_read(UC_X86_REG_RDX)
            # print(f"ans_address: {hex(ans_address)}")
            uc.mem_write(uc.reg_read(UC_X86_REG_RDX), bytes([byte]))
            uc.reg_write(UC_X86_REG_RAX, 1)
            uc.reg_write(UC_X86_REG_RIP, int.from_bytes(uc.mem_read(uc.reg_read(UC_X86_REG_RSP),8),"little"))
            uc.reg_write(UC_X86_REG_RSP, uc.reg_read(UC_X86_REG_RSP) + 8)
        else:
            print("input drained")
            uc.emu_stop()
    elif address == 0x1A703AA50:
        # print("puts() called")
        ss =  uc.mem_read(uc.reg_read(UC_X86_REG_RCX),4)
        # print(f"ss: {ss}")
        uc.reg_write(UC_X86_REG_RIP, int.from_bytes(uc.mem_read(uc.reg_read(UC_X86_REG_RSP),8),"little"))
        uc.reg_write(UC_X86_REG_RSP, uc.reg_read(UC_X86_REG_RSP) + 8)
    elif address == 0x1A703AA40:
        # print("memcmp() called")
        enc_text = uc.mem_read(uc.reg_read(UC_X86_REG_RDX), 8)
        # print(enc_text)
        dec_text = decrypt(key, enc_text)
        # print(dec_text)
        uc.mem_write(ans_address-7, dec_text)
        ANS = dec_text
        # print(f"ans_address: {hex(ans_address - 7)}")
        uc.reg_write(UC_X86_REG_RIP, int.from_bytes(uc.mem_read(uc.reg_read(UC_X86_REG_RSP),8),"little"))
        uc.reg_write(UC_X86_REG_RSP, uc.reg_read(UC_X86_REG_RSP) + 8)
        uc.reg_write(UC_X86_REG_RAX, 0)

mu = Uc(UC_ARCH_X86,UC_MODE_64)

mu.mem_map(STACK_ADDR, STACK_SIZE)
mu.reg_write(UC_X86_REG_RSP, STACK_ADDR + STACK_SIZE // 2)
pe = pefile.PE(PE_PATH, fast_load=True)
base_address = pe.OPTIONAL_HEADER.ImageBase
for section in pe.sections:
    sectionName = section.Name.strip(b'\0')
    # if(sectionName == b'.text'):
    start = base_address + section.VirtualAddress
    size = section.Misc_VirtualSize
    mu.mem_map(start,(size + 0xfff) &~ 0xfff)
    mu.mem_write(start,section.get_data())
    print(f"[+] Mapped {sectionName} at {hex(start)} ({hex(size)})")


# #register hook
mu.hook_add(UC_HOOK_CODE, hook_instruction)

mu.mem_write(0x1A71B2210, int.to_bytes(0xDEADBEEF100, 16, 'little'))

with open(PE_PATH, 'r+b') as f:
    while True:
        # try:

            print("FUN_VA:", hex(FUN_VA))
            ANS = find_ans(FUN_VA,file_path=PE_PATH)
            ans = bytearray(8)
            if ANS != None:
                ans = bytearray(reversed(ANS))
            else:
                key = find_key_enc(FUN_VA, file_path=PE_PATH)
            smcs = {}
            ans_address = None


            #emulation start
            mu.emu_start(FUN_VA, FUN_VA + CODE_EXEC_LIMIT)


            for addr, data in smcs.items():
                print(f"[+] Committing changes to {hex(addr)} ({hex(len(data))})")
                # print(data[:8])

                # mu.mem_write(addr, bytes(data))
                code = data
                for section in pe.sections:
                    sectionName = section.Name.strip(b'\0')
                    if(sectionName == b'.text'):
                        start = base_address + section.VirtualAddress
                        size = section.Misc_VirtualSize
                        # if addr >= start and addr < start + size:
                        #     print(f'Committing code changes at {addr:#x}')
                            # print(section.PointerToRawData)

                        f.seek(section.PointerToRawData + addr - start)
                        f.write(data)
                        break
                FUN_VA = addr
            store_ans(ANS)
            store_checkpoint(addr)

    # except Exception as e:
    #     end_time = time.time()
    #     print(f"总耗时：{end_time - start_time:.2f} 秒")
    #     print(f'[!] Unicorn error: {e}')
    #     break

最后于 15小时前 被SleepAlone编辑 ，原因：


更多【CTF对抗-DEFCON33-Quals nfuncs angr➕unicorn 快速自动化逆向】相关视频教程：www.yxfzedu.com




相关文章推荐

记录自己的技术轨迹
文章规则：
1)：文章标题请尽量与文章内容相符
2)：严禁色情、血腥、暴力
3)：严禁发布任何形式的广告贴
4)：严禁发表关于中国的政治类话题
5)：严格遵守中国互联网法律法规
6)：有侵权,疑问可发邮件至service@yxfzedu.com
近期原创 更多

Markdown Editor

友情链接
内核结构FAQ
免责声明
课程目录
Windows内核
游戏逆向(FPS)
技术交流QQ群
342478842215039827137189196
314055665159620936
www.yxfzedu.com是一个分享游戏安全,游戏外挂与反外挂,游戏驱动保护的视频网站！
接各种驱动定制如：游戏读写驱动，软件内存保护，防止调试等功能定制。
出租读写驱动，调试驱动，无痕注入支持各种游戏。
邮箱：service@yxfzedu.com
QQ：851920120
特别说明：不接游戏数据分析，外挂编写，登陆协议等类似业务。
