编程技术- SandboxiePlus Service隔离代码分析

推荐 原创

周杰伦

文章分类编程技术阅读数 : 17阅读时长 : 9分钟


【编程技术- SandboxiePlus Service隔离代码分析】此文章归类为：编程技术。

最近写Sandboxieplus劫持com请求方法的例子，RpcSs和DcomLaunch都是服务类型，需要详细了解SandboxiePlus如何实现服务隔离的。即本文剖析一个问题：SandboxiePlus如何管理一个服务的。
Windows服务对应的文件有两种类型：

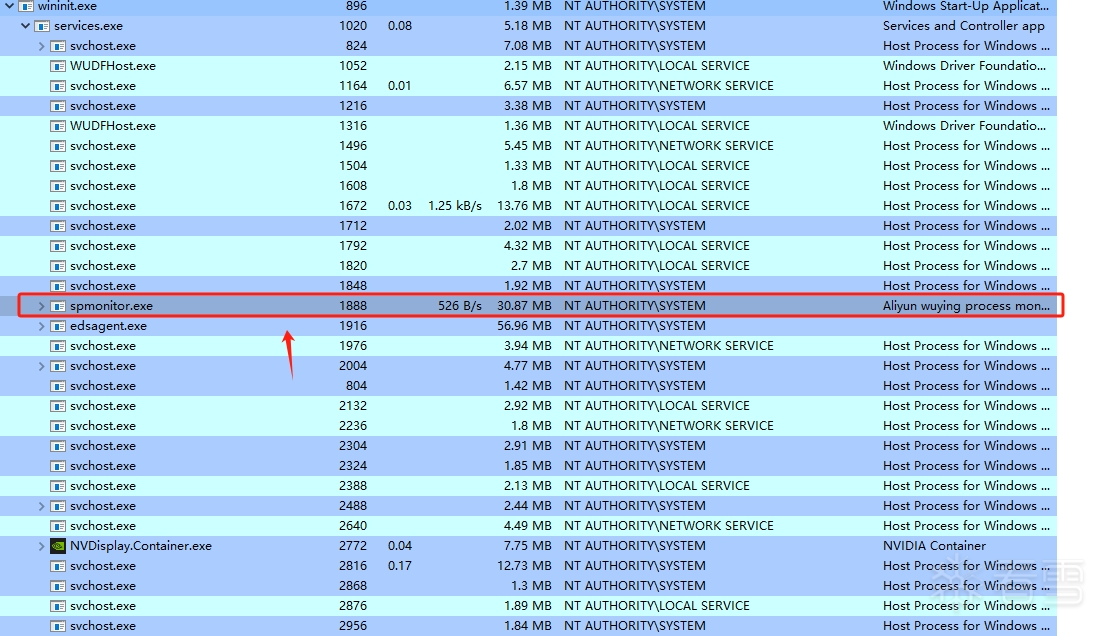

  • exe可执行文件，它是由services.exe负责进行启动的，SandboxiePlus可以启动这种类型。
    service_exe_example

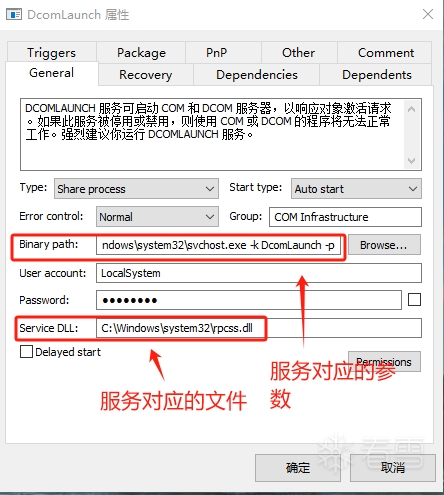

  • dll动态链接库文件，它是由svchost.exe负责进行启动的，SandboxiePlus无法执行该类型的服务。一般这种类型的服务都是作为一个服务组存在的，即一个svchost会加载多个dll，每一个dll对应一个服务，这些服务构成一个服务组。如下图：
    service_dll_example
    service_dll_example

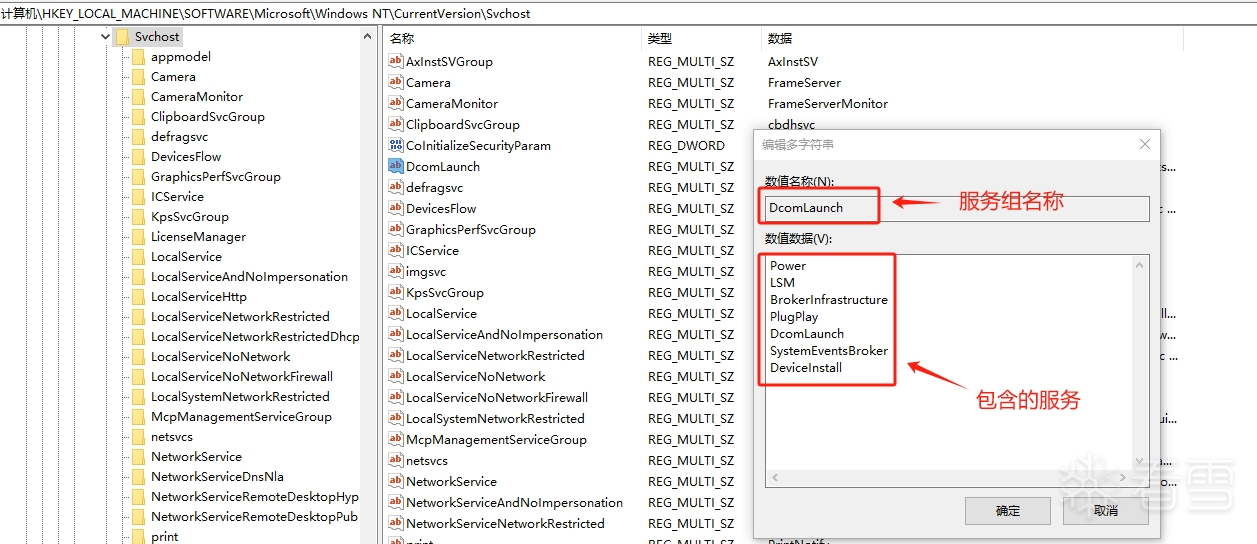

    这个服务组名称叫做DcomLaunch，对应的注册表路径如下：
    service_dll_example

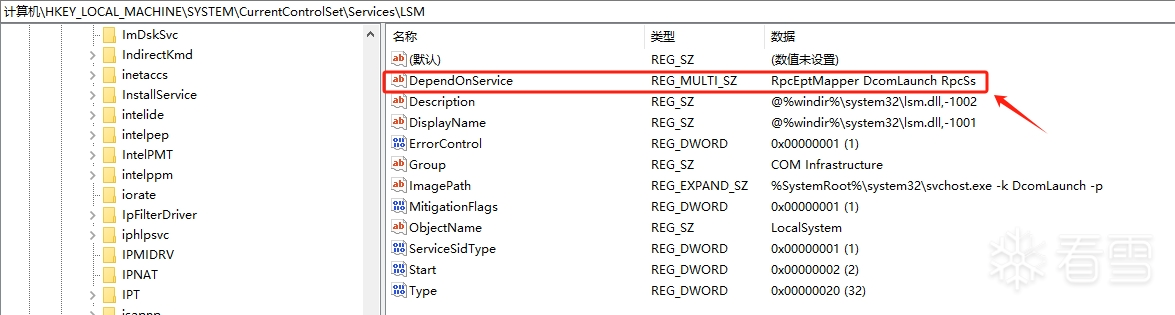

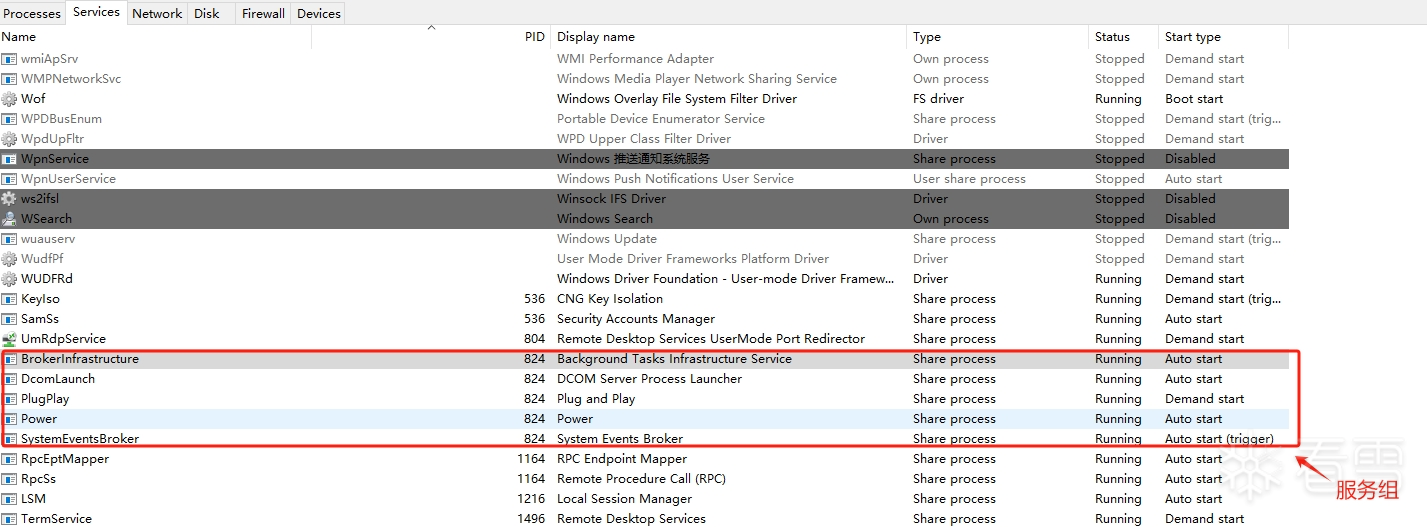

    从上面的图片中可以发现，DcomLaunch服务组包含七个服务，但824进程仅运行了五个服务，这是因为LSM和DeviceInstall服务需要依赖其他的服务，如下图：
    service_dll_example

测试用例

一个Windows服务必须存在存在两个处理逻辑：ServiceMain函数和ServiceCtrlHandler函数。如果该服务是由svchost.exe进行托管的话，这个dll必须导出ServiceMain函数，函数名不可以改变。ServiceMain函数是服务的主要逻辑代码，ServiceCtrlHandler函数主要响应来自SCM(服务控制管理器)各种控制命令，比如：STOP和SHUTDOWN。下面将使用如下代码生成服务ServiceTest.exe文件研究SandboxiePlus如何实现服务的隔离。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
#include <windows.h>
#include <tchar.h>
#include <strsafe.h>

SERVICE_STATUS          g_ServiceStatus = { 0 };
SERVICE_STATUS_HANDLE   g_StatusHandle = NULL;
HANDLE                  g_hStopEvent = NULL;

VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv);
VOID WINAPI ServiceCtrlHandler(DWORD);
DWORD WINAPI ServiceWorkerThread(LPVOID lpParam);

#define SERVICE_NAME  _T("SampleService")

int main(int argc, char* argv[])
{
    SERVICE_TABLE_ENTRY DispatchTable[] =
    {
        { (LPWSTR)SERVICE_NAME, (LPSERVICE_MAIN_FUNCTION)ServiceMain },
        { NULL, NULL }
    };

    if (!StartServiceCtrlDispatcher(DispatchTable))
    {
        return GetLastError();
    }

    return 0;
}

VOID WINAPI ServiceMain(DWORD argc, LPTSTR* argv)
{
    DWORD Status = E_FAIL;
    HANDLE hThread = INVALID_HANDLE_VALUE;
    // Register our service control handler with the SCM
    g_StatusHandle = RegisterServiceCtrlHandler(SERVICE_NAME, ServiceCtrlHandler);
    if (g_StatusHandle == NULL)
    {
        goto EXIT;
    }

    // Tell the service controller we are starting
    ZeroMemory(&g_ServiceStatus, sizeof(g_ServiceStatus));
    g_ServiceStatus.dwServiceType = SERVICE_WIN32_OWN_PROCESS;
    g_ServiceStatus.dwControlsAccepted = 0;
    g_ServiceStatus.dwCurrentState = SERVICE_START_PENDING;
    g_ServiceStatus.dwWin32ExitCode = 0;
    g_ServiceStatus.dwServiceSpecificExitCode = 0;
    g_ServiceStatus.dwCheckPoint = 0;

    if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus))
    {
        OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error"));
    }

    // Create stop event to wait on later
    g_hStopEvent = CreateEvent(NULL, TRUE, FALSE, NULL);
    if (g_hStopEvent == NULL)
    {
        g_ServiceStatus.dwControlsAccepted = 0;
        g_ServiceStatus.dwCurrentState = SERVICE_STOPPED;
        g_ServiceStatus.dwWin32ExitCode = GetLastError();
        g_ServiceStatus.dwCheckPoint = 1;

        if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus))
        {
            OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error"));
        }
        goto EXIT;
    }

    // Tell the service controller we are started
    g_ServiceStatus.dwControlsAccepted = SERVICE_ACCEPT_STOP | SERVICE_ACCEPT_SHUTDOWN;
    g_ServiceStatus.dwCurrentState = SERVICE_RUNNING;
    g_ServiceStatus.dwWin32ExitCode = 0;
    g_ServiceStatus.dwCheckPoint = 0;

    if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus))
    {
        OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error"));
    }

    // Start the thread that will perform the main task of the service
    hThread = CreateThread(NULL, 0, ServiceWorkerThread, NULL, 0, NULL);
    if (hThread == NULL)
    {
        g_ServiceStatus.dwControlsAccepted = 0;
        g_ServiceStatus.dwCurrentState = SERVICE_STOPPED;
        g_ServiceStatus.dwWin32ExitCode = GetLastError();
        g_ServiceStatus.dwCheckPoint = 1;

        if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus))
        {
            OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error"));
        }
        goto EXIT;
    }

    // Wait until our worker thread exits effectively signaling that the service needs to stop
    WaitForSingleObject(hThread, INFINITE);

    // Cleanup
    CloseHandle(hThread);
    CloseHandle(g_hStopEvent);

    // Tell the service controller we are stopped
    g_ServiceStatus.dwControlsAccepted = 0;
    g_ServiceStatus.dwCurrentState = SERVICE_STOPPED;
    g_ServiceStatus.dwWin32ExitCode = 0;
    g_ServiceStatus.dwCheckPoint = 3;

    if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus))
    {
        OutputDebugString(_T("MySampleService: ServiceMain: SetServiceStatus returned error"));
    }

EXIT:
    return;
}

VOID WINAPI ServiceCtrlHandler(DWORD Ctrl)
{
    switch (Ctrl)
    {
    case SERVICE_CONTROL_STOP:
    case SERVICE_CONTROL_SHUTDOWN:
        if (g_ServiceStatus.dwCurrentState != SERVICE_RUNNING)
            break;

        g_ServiceStatus.dwControlsAccepted = 0;
        g_ServiceStatus.dwCurrentState = SERVICE_STOP_PENDING;
        g_ServiceStatus.dwWin32ExitCode = 0;
        g_ServiceStatus.dwCheckPoint = 4;

        if (!SetServiceStatus(g_StatusHandle, &g_ServiceStatus))
        {
            OutputDebugString(_T("MySampleService: ServiceCtrlHandler: SetServiceStatus returned error"));
        }

        // This will signal the worker thread to start shutting down
        SetEvent(g_hStopEvent);

        break;

    default:
        break;
    }
}

DWORD WINAPI ServiceWorkerThread(LPVOID lpParam)
{
    // 主服务逻辑在此实现
    // 这是一个示例，每10秒检查一次停止事件
    while (WaitForSingleObject(g_hStopEvent, 10000) != WAIT_OBJECT_0)
    {
        // 实现服务的核心功能
        OutputDebugString(_T("MySampleService: Doing stuff..."));
    }

    return ERROR_SUCCESS;
}

SandboxiePlus服务代码分析

服务创建、打开和关闭

  • CreateService，对应的SandboxiePlus源码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
_FX SC_HANDLE Scm_CreateServiceW(
    SC_HANDLE hSCManager,
    WCHAR *lpServiceName, WCHAR *lpDisplayName, ULONG dwDesiredAccess,
    ULONG dwServiceType, ULONG dwStartType, ULONG dwErrorControl,
    WCHAR *lpBinaryPathName, WCHAR *lpLoadOrderGroup, WCHAR *lpdwTagId,
    WCHAR *lpDependencies, WCHAR *lpServiceStartName, WCHAR *lpPassword)
{
    NTSTATUS status;
    SC_HANDLE hService;
    HANDLE hkey;
    UNICODE_STRING uni;
    WCHAR *name;

    //
    // verify the service does not exist (also verifies hSCManager,
    // and that the service name is not NULL)
    //

    // 检查服务是否已经存在，沙盒中的hSCManager必须是HANDLE_SERVICE_MANAGER
    hService = Scm_OpenServiceWImpl(
        hSCManager, lpServiceName, SERVICE_QUERY_STATUS);

    if (hService) {
        Scm_CloseServiceHandleImpl(hService);
        SetLastError(ERROR_SERVICE_EXISTS);
        return NULL;
    }

    if (GetLastError() != ERROR_SERVICE_DOES_NOT_EXIST)
        return NULL;

    //
    // create a key for the new service
    //
    // 设置服务注册表内容，注册表位置HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\lpServiceName
    hkey = Scm_OpenKeyForService(lpServiceName, TRUE);
    if (! hkey) {
        // SetLastError already called
        return NULL;
    }

    // Type => SERVICE_WIN32_OWN_PROCESS
    RtlInitUnicodeString(&uni, L"Type");
    status = NtSetValueKey(
        hkey, &uni, 0, REG_DWORD, &dwServiceType, sizeof(ULONG));
    if (! NT_SUCCESS(status))
        goto abort;

    // Start => auto
    RtlInitUnicodeString(&uni, L"Start");
    status = NtSetValueKey(
        hkey, &uni, 0, REG_DWORD, &dwStartType, sizeof(ULONG));
    if (! NT_SUCCESS(status))
        goto abort;

    // ErrorControl => 1，
    RtlInitUnicodeString(&uni, L"ErrorControl");
    status = NtSetValueKey(
        hkey, &uni, 0, REG_DWORD, &dwErrorControl, sizeof(ULONG));
    if (! NT_SUCCESS(status))
        goto abort;

    if (lpDisplayName) {

        // Service Test
        RtlInitUnicodeString(&uni, L"DisplayName");
        status = NtSetValueKey(
            hkey, &uni, 0, REG_SZ, lpDisplayName,
            (wcslen(lpDisplayName) + 1) * sizeof(WCHAR));
        if (! NT_SUCCESS(status))
            goto abort;
    }

    if (lpBinaryPathName) {

        // 可执行文件的路径 => D:\test\service_test_exe.exe
        RtlInitUnicodeString(&uni, L"ImagePath");
        status = NtSetValueKey(
            hkey, &uni, 0, REG_SZ, lpBinaryPathName,
            (wcslen(lpBinaryPathName) + 1) * sizeof(WCHAR));
        if (! NT_SUCCESS(status))
            goto abort;
    }

    if (lpServiceStartName) {

        RtlInitUnicodeString(&uni, L"ObjectName");
        status = NtSetValueKey(
            hkey, &uni, 0, REG_SZ, lpServiceStartName,
            (wcslen(lpServiceStartName) + 1) * sizeof(WCHAR));
        if (! NT_SUCCESS(status))
            goto abort;
    }

    //
    // add the service to SbieSvc list of sandboxed services
    //
    // 标记服务是一个沙盒化服务，将lpServiceName添加到HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SbieSvc的SandboxedServices中
    status = Scm_AddBoxedService(lpServiceName);

    if (! NT_SUCCESS(status))
        goto abort;

    NtClose(hkey);

    //
    // allocate a 'handle' that points to the service name
    //

    name = Dll_Alloc(
        sizeof(ULONG) + (wcslen(lpServiceName) + 1) * sizeof(WCHAR));
    *(ULONG *)name = tzuk;
    wcscpy((WCHAR *)(((ULONG *)name) + 1), lpServiceName);
    _wcslwr(name);

    SetLastError(0);
    return (SC_HANDLE)name;

    //
    // failure:  delete the key for the new service
    //

abort:

    NtDeleteKey(hkey);
    NtClose(hkey);

    SetLastError(ERROR_INVALID_PARAMETER);
    return NULL;
}

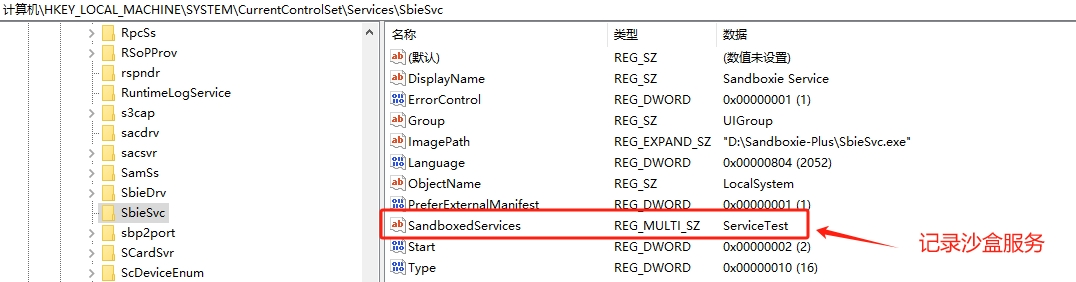

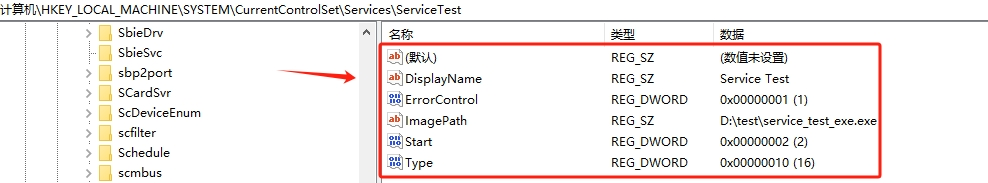

执行sc create ServiceTest binPath= "D:\test\service_test_exe.exe" DisplayName= "Service Test" start= auto 命令来创建服务，注册表方面的修改如下：
scm_createservice
scm_createservice

  • OpenService，主要逻辑：判断目标服务是否在HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SbieSvc的SandboxedServices键对应的值中，如果在表示打开的服务是沙盒化服务，直接打开；否则和SbieSvc服务进程通信，让该服务进程进行查询。
    对应的源码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
_FX SC_HANDLE Scm_OpenServiceWImpl(
    SC_HANDLE hSCManager,
    const WCHAR *lpServiceName,
    DWORD dwDesiredAccess)
{
    WCHAR *name;
    BOOLEAN ok = FALSE;

    if (hSCManager != HANDLE_SERVICE_MANAGER) {
        SetLastError(ERROR_INVALID_HANDLE);
        return (SC_HANDLE)0;
    }

    if ((! lpServiceName) || (! *lpServiceName)) {
        SetLastError(ERROR_INVALID_PARAMETER);
        return (SC_HANDLE)0;
    }

    //
    // open the service if we know its name, first check in the sandbox,
    // and if not found, outside the sandbox
    //

    Scm_DiscardKeyCache(lpServiceName);

    if (Scm_IsBoxedService(lpServiceName)) {

        // 调用NtCreateKey 或 NtOpenKey打开对应的服务
        HANDLE hkey = Scm_OpenKeyForService(lpServiceName, FALSE);
        if (hkey) {
            NtClose(hkey);
            ok = TRUE;
        }

    } else {
        // 调用SbieDll_CallServer向SbieSvc服务发送MSGID_SERVICE_QUERY类型请求
        SERVICE_QUERY_RPL *rpl = (SERVICE_QUERY_RPL *)
            Scm_QueryServiceByName(lpServiceName, FALSE, FALSE);
        if (rpl) {
            Dll_Free(rpl);
            ok = TRUE;
        }
    }

    if (! ok) {
        // either Scm_OpenKeyForService or Scm_QueryServiceByName
        // has already called SetLastError
        return (SC_HANDLE)0;
    }

    //
    // allocate a 'handle' that points to the service name
    //

    name = Dll_Alloc(
        sizeof(ULONG) + (wcslen(lpServiceName) + 1) * sizeof(WCHAR));
    *(ULONG *)name = tzuk;
    wcscpy((WCHAR *)(((ULONG *)name) + 1), lpServiceName);
    _wcslwr(name);

    SetLastError(0);
    return (SC_HANDLE)name;
}
  • CloseServiceHandle，对应的源码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
_FX BOOL Scm_CloseServiceHandleImpl(SC_HANDLE hSCObject)
{
    BOOL ok = FALSE;

    // 关闭Scm_OpenSCManagerW返回的结果HANDLE_SERVICE_MANAGER
    if (hSCObject == HANDLE_SERVICE_MANAGER)
        ok = TRUE;
    else if (Scm_GetHandleName(hSCObject)) {
        // 删除Scm_Notify_Global中和hSCObject相关的element，和NotifyServiceStatusChange函数相关
        Scm_Notify_CloseHandle(hSCObject);
        Dll_Free(hSCObject);
        ok = TRUE;
    }

    if (ok)
        SetLastError(0);
    else
        SetLastError(ERROR_INVALID_HANDLE);
    return ok;
}

服务启动StartService

主要逻辑：首先查看是否是沙盒化服务，如果是调用SbieDll_StartBoxedService，向SbieSvc进程发送MSGID_SERVICE_RUN请求；否则调用SbieDll_CallServer函数，向SbieSvc进程发送MSGID_SERVICE_START请求，启动服务。
SbieDll_StartBoxedService对应的源码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
_FX BOOL SbieDll_StartBoxedService(const WCHAR *ServiceName, BOOLEAN WithAdd)   // WithAdd = False
{
    HANDLE hkey;
    SERVICE_STATUS ss;
    SERVICE_QUERY_RPL *rpl;
    ULONG retries, error;

    WCHAR text[130];
    Sbie_snwprintf(text, 130, L"StartBoxedService; name: '%s'", ServiceName);
    SbieApi_MonitorPutMsg(MONITOR_SCM, text);

    //
    // when invoked from SandboxieRpcSs to handle StartProcess,
    // specify WithAdd to add the service to the sandbox
    //

    if (WithAdd)
        Scm_AddBoxedService(ServiceName);

    //
    // get service parameters and check that the service can be started
    //

    rpl = Scm_QueryBoxedServiceByName(ServiceName, TRUE, -1);
    if (! rpl)
        return FALSE;

    // 服务处于RUNNING状态，无需启动
    if (rpl->service_status.dwCurrentState != SERVICE_STOPPED &&
        rpl->service_status.dwCurrentState != SERVICE_START_PENDING) {

        Dll_Free(rpl);
        SetLastError(ERROR_SERVICE_ALREADY_RUNNING);
        return FALSE;
    }

    // 启动的服务是个驱动，无法启动，报错。
    if (rpl->service_status.dwServiceType & SERVICE_DRIVER) {

        SbieApi_Log(2103, L"%S [%S] (StartService)", ServiceName, Dll_BoxName);
        Dll_Free(rpl);
        SetLastError(ERROR_ACCESS_DENIED);
        return FALSE;
    }

    // 如果启动的服务不是一个exe或dll，暂时不支持，报错。
    if (! (rpl->service_status.dwServiceType & SERVICE_WIN32)) {

        Dll_Free(rpl);
        SetLastError(ERROR_SERVICE_LOGON_FAILED);
        return FALSE;
    }

    //
    // set service status - start pending
    //

    hkey = Scm_OpenKeyForService(ServiceName, TRUE);
    if (! hkey) {
        error = GetLastError();
        Dll_Free(rpl);
        SetLastError(error);
        return FALSE;
    }

    //
    // indicate the service is initializing
    //

    memzero(&ss, sizeof(SERVICE_STATUS));
    ss.dwCurrentState = SERVICE_START_PENDING;
    ss.dwControlsAccepted = SERVICE_ACCEPT_STOP;
    ss.dwWaitHint = 5000;

    // 设置该服务的状态，其实就是设置注册表键对应的值
    Scm_SetServiceStatus_Internal(
        hkey, HANDLE_SERVICE_STATUS, &ss, FALSE);

    CloseHandle(hkey);

    //
    // launch the service
    //

    error = Scm_StartBoxedService2(ServiceName, rpl);

    Dll_Free(rpl);

    //
    // wait for the service to indicate it has started
    //

    if (! error) {

        error = ERROR_SERVICE_LOGON_FAILED;

        for (retries = 0; retries < 40; ++retries) {

            Sleep(500);

            rpl = Scm_QueryBoxedServiceByName(ServiceName, TRUE, 0);
            if (! rpl)
                return FALSE;

            // 查看服务是否启动成功
            if (rpl->service_status.dwCurrentState == SERVICE_RUNNING) {
                error = 0;
                break;
            }

            Dll_Free(rpl);
        }
    }

   ......
   SetLastError(0);
   return TRUE;
}

Scm_StartBoxedService2函数对应的源码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
_FX ULONG Scm_StartBoxedService2(const WCHAR *name, SERVICE_QUERY_RPL *qrpl)
{
    SERVICE_RUN_REQ *req;
    MSG_HEADER *rpl;
    ULONG error, path_len, req_len;
    WCHAR *path;
    BOOL free_path;

    //
    // special handling for Sandboxie services:
    // either run directly (for SandboxieCrypto)
    // or build a path to the Sandboxie executable
    //

    free_path = FALSE;
    // _bits -> 后台智能传输服务，_wuauserv -> Windows更新服务，Scm_CryptSvc -> 加密服务
    // 这三个特殊服务特殊处理
    if (_wcsicmp(name, _bits) == 0           ||
        _wcsicmp(name, _wuauserv) == 0       ||
        _wcsicmp(name, Scm_CryptSvc) == 0) {

        //PROCESS_INFORMATION pi;
        STARTUPINFO si;

        const WCHAR *ProcessName;
        //BOOLEAN use_sbiesvc = TRUE;

        if (_wcsicmp(name, _bits) == 0) {
            ProcessName = SandboxieBITS;
            Scm_DeletePermissions(L"69AD4AEE-51BE-439B-A92C-86AE490E8B30");
        } else if (_wcsicmp(name, _wuauserv) == 0) {
            ProcessName = SandboxieWUAU;
            Scm_DeletePermissions(L"653C5148-4DCE-4905-9CFD-1B23662D3D9E");
        }
        else if (_wcsicmp(name, Scm_CryptSvc) == 0) {
            ProcessName = SandboxieCrypto;
            //use_sbiesvc = FALSE;
        } else
            ProcessName = NULL;

        si.lpReserved = NULL;
        if (SbieDll_RunFromHome(ProcessName, NULL, &si, NULL)) {

            path = (WCHAR *)si.lpReserved;
            if (path)
                free_path = TRUE;
        }
    }

    if (! free_path) {

        path = Scm_GetServiceConfigString(qrpl, 'P');
    }

    //
    // otherwise start service through SbieSvc
    //

    path_len = (wcslen(path) + 1) * sizeof(WCHAR);
    req_len = sizeof(SERVICE_RUN_REQ) + path_len;

    req = Dll_Alloc(req_len);
    req->h.length = req_len;
    req->h.msgid = MSGID_SERVICE_RUN;

    req->type = qrpl->service_status.dwServiceType;

    if (_wcsicmp(name, L"McAfee SiteAdvisor Service") == 0) {

        //
        // the McAfee SiteAdvisor Service is a WIN32_SHARE_PROCESS service
        // when it is part of the Total Protection suite, so we need to
        // make sure it will always be treated as SERVICE_WIN32_OWN_PROCESS
        //

        req->type = SERVICE_WIN32_OWN_PROCESS;
    }

    wcsncpy(req->name, name, 64);
    req->name[63] = L'\0';

    req->devmap[0] = L'\0';
    File_GetSetDeviceMap(req->devmap);

    req->path_len = path_len;
    memcpy(req->path, path, path_len);

    // 向SbieSvc发送MSGID_SERVICE_RUN请求，创建进程
    rpl = (MSG_HEADER *)SbieDll_CallServer(&req->h);
    if (! rpl)
        error = ERROR_NOT_ENOUGH_MEMORY;
    else {
        error = rpl->status;
        Dll_Free(rpl);
    }

    //
    // finish
    //

    if (free_path)
        HeapFree(GetProcessHeap(), HEAP_GENERATE_EXCEPTIONS, path);

    return error;
}

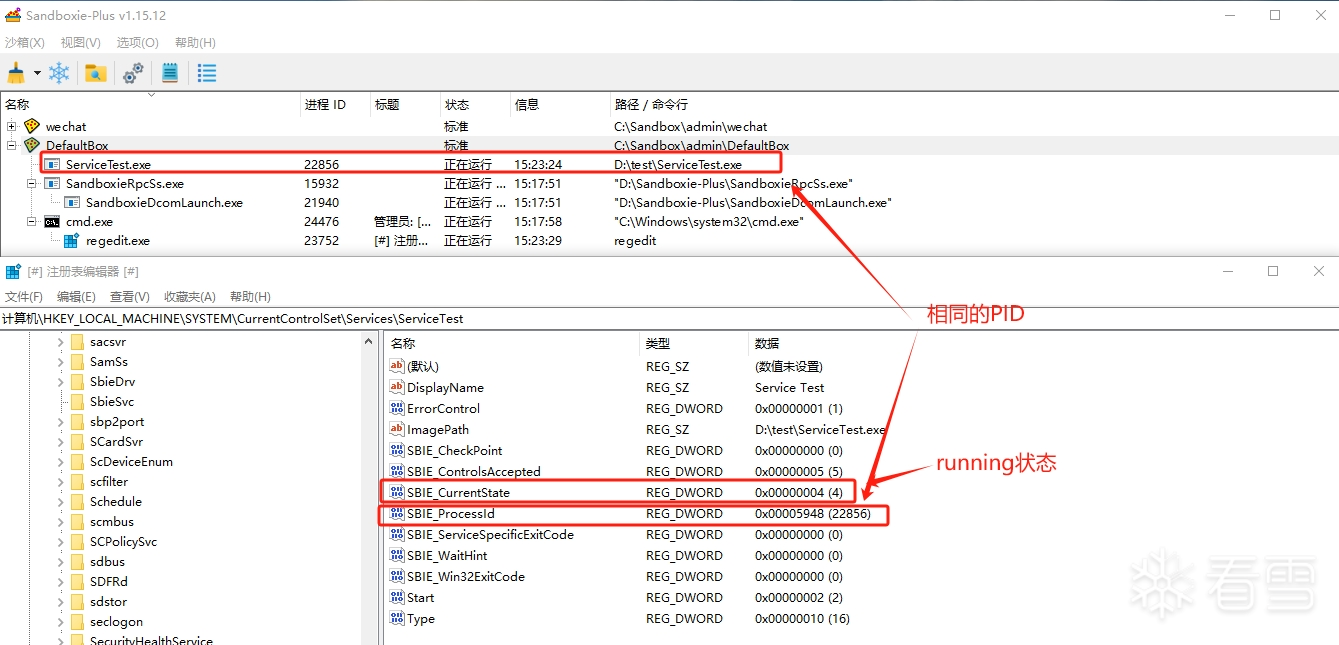

调用StartService之后，对应服务的注册表内容如下：
scm_startservice

使用DebugView可以看到服务输出的内容，如下图：
scm_startservice
启动的服务进程会被再次注入SbieDll，其对StartServiceCtrlDispatcher hook的代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
FX BOOL Scm_StartServiceCtrlDispatcherX(
    const void *ServiceTable, BOOLEAN IsUnicode)
{
    static const WCHAR *ServiceName_EnvVar =
        L"00000000_" SBIE L"_SERVICE_NAME";
    WCHAR *ServiceName;
    WCHAR *Buffer;
    UNICODE_STRING uni;
    void *args[3];
    ULONG ThreadId;
    HANDLE hEvent;
    SERVICE_STATUS ss;
    NTSTATUS status;
    IO_STATUS_BLOCK iosb;

    ...... // 通过环境变量获取服务的名称，设置注册表中服务的状态

    //
    // launch ServiceMain to initialize
    //

    if (IsUnicode) {

        args[0] = ((SERVICE_TABLE_ENTRYW *)ServiceTable)->lpServiceProc;
        args[1] = ((SERVICE_TABLE_ENTRYW *)ServiceTable)->lpServiceName;
        args[2] = NULL;

    } else {

        args[0] = ((SERVICE_TABLE_ENTRYA *)ServiceTable)->lpServiceProc;
        args[1] = ((SERVICE_TABLE_ENTRYA *)ServiceTable)->lpServiceName;
        args[2] = NULL;
    }

    if (_wcsicmp(ServiceName, Scm_MsiServer) == 0) {

        Scm_IsMsiServer = TRUE;
        Scm_SetupMsiHooks();
    }

    // 执行ServiceMain函数，ServiceMain函数会设置Scm_Handler或Scm_HandlerEx
    HANDLE ThreadHandle = CreateThread(NULL, 0, Scm_ServiceMainThread, args, 0, &ThreadId);
    if (ThreadHandle)
        CloseHandle(ThreadHandle);
    else
        Scm_Stopped = TRUE;

    //
    // main loop:  wait for changes on the service key
    //

    hEvent = CreateEvent(NULL, FALSE, FALSE, NULL);
    if (! hEvent) {
        SbieApi_Log(2211, ServiceName);
        return FALSE;
    }

    Buffer = Dll_Alloc(1024);
    RtlInitUnicodeString(&uni, SBIE L"_ControlCode");

    status = NtNotifyChangeKey(
        Scm_ServiceKey, hEvent, NULL, NULL, &iosb,
        REG_NOTIFY_CHANGE_LAST_SET, FALSE, Buffer, 1024, TRUE);

    if (!NT_SUCCESS(status)) {
        SbieApi_Log(2211, ServiceName);
        return FALSE;
    }

    // 当ServiceCtrlHandler函数设置服务的状态为STOP时，Scm_Stopped = TRUE，跳出while循环
    while (! Scm_Stopped) {

        union {
            KEY_VALUE_PARTIAL_INFORMATION info;
            WCHAR info_space[64];
        } u;
        ULONG len;

        // Wait for the reg value notification event, or 1 sec.
        status = WaitForSingleObject(hEvent, 1000);

        // 当服务所在的注册表键发生改变，进入到if中
        if (NT_SUCCESS(status)) {

            Scm_DiscardKeyCache(ServiceName);

            status = NtQueryValueKey(
                Scm_ServiceKey, &uni, KeyValuePartialInformation,
                &u.info, sizeof(u), &len);

             // 发生控制命令给ServiceCtrlHandler函数
            if (NT_SUCCESS(status) &&
                u.info.Type == REG_DWORD && u.info.DataLength == 4) {
                // 执行ServiceCtrlHandler，参数是控制码
                if (Scm_Handler)
                    Scm_Handler(*(ULONG *)u.info.Data);
                // 执行ServiceCtrlHandler，参数是控制码
                else if (Scm_HandlerEx) {
                    Scm_HandlerEx(
                        *(ULONG *)u.info.Data, 0, NULL, Scm_HandlerContext);
                }
            }

            status = NtDeleteValueKey(Scm_ServiceKey, &uni);
            if (NT_SUCCESS(status)) {           // if key was actually deleted, we need to reissue the reg notification
                status = NtNotifyChangeKey(
                    Scm_ServiceKey, hEvent, NULL, NULL, &iosb,
                    REG_NOTIFY_CHANGE_LAST_SET, FALSE, Buffer, 1024, TRUE);
            }
        }
    }

    //
    // if the service never started, report error
    //

    Sbie_snwprintf(text, 130, L"StartServiceCtrlDispatcher; result: %s", Scm_Started ? L"success" : L"failure");
    SbieApi_MonitorPutMsg(MONITOR_SCM, text);

    if (! Scm_Started) {
        SbieApi_Log(2211, ServiceName);
        return FALSE;
    }

    return TRUE;
}

对RegisterServiceCtrlHandler函数hook的源码主要设置Scm_Handler或Scm_HandlerEx，如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
_FX SERVICE_STATUS_HANDLE Scm_RegisterServiceCtrlHandlerHelp(
    UCHAR *ServiceName, ULONG_PTR HandlerProc, void *Context, ULONG Flags)
{
    if (Flags == 0) {
        Scm_Handler = (LPHANDLER_FUNCTION)HandlerProc;
    } else if (Flags == 2) {
        Scm_HandlerEx = (LPHANDLER_FUNCTION_EX)HandlerProc;
        Scm_HandlerContext = Context;
    } else {
        SbieApi_Log(2205, L"RegisterServiceCtrlHandlerHelp");
        SetLastError(ERROR_SERVICE_NOT_IN_EXE);
        return NULL;
    }
    return (SERVICE_STATUS_HANDLE)HANDLE_SERVICE_STATUS;
}

服务控制ControlService

该函数可产生暂停、停止和恢复服务等效果，主要逻辑：设置服务的注册表SBIE_ControlCode键实现。上文中的Scm_StartServiceCtrlDispatcherX函数设置了hEvent来监听是否设置了SBIE_ControlCode，如果设置了就调用Scm_Handler或Scm_HandlerEx，通过这种方式实现了模拟SCM发送各种控制码给ServiceCtrlHandler函数的过程。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
_FX BOOL Scm_ControlServiceImpl(
    SC_HANDLE hService, DWORD dwControl, SERVICE_STATUS *lpServiceStatus)
{
    NTSTATUS status;
    WCHAR *ServiceName;
    HANDLE hkey;
    SERVICE_QUERY_RPL *rpl;
    UNICODE_STRING uni;
    ULONG val, retries;
    union {
        KEY_VALUE_PARTIAL_INFORMATION info;
        WCHAR info_space[64];
    } u;

    //
    // get service name
    //

    ServiceName = Scm_GetHandleName(hService);
    if (! ServiceName)
        return FALSE;

    if (! Scm_IsBoxedService(ServiceName)) {

        if (dwControl == SERVICE_CONTROL_CONTINUE ||
            dwControl == SERVICE_CONTROL_INTERROGATE) {

            return Scm_QueryServiceStatusImpl(hService, lpServiceStatus);

        } else {

            SetLastError(ERROR_ACCESS_DENIED);
            return FALSE;
        }
    }

    //
    // verify that the service is in the running or paused state
    //

    rpl = Scm_QueryBoxedServiceByName(ServiceName, TRUE, 0);
    if (! rpl)
        return FALSE;
    val = rpl->service_status.dwCurrentState;
    Dll_Free(rpl);

    if (val == SERVICE_STOPPED) {
        SetLastError(ERROR_SERVICE_NOT_ACTIVE);
        return FALSE;
    }

    if (val != SERVICE_RUNNING && val != SERVICE_PAUSED) {
        SetLastError(ERROR_SERVICE_CANNOT_ACCEPT_CTRL);
        return FALSE;
    }

    //
    // open the key for the service and transmit the control
    //

    hkey = Scm_OpenKeyForService(ServiceName, TRUE);
    if (! hkey) {
        SetLastError(ERROR_SERVICE_REQUEST_TIMEOUT);
        return FALSE;
    }

    RtlInitUnicodeString(&uni, SBIE L"_ControlCode");           //
    val = dwControl;
    // 设置SBIE_ControlCode键对应的值，也就是ServiceCtrlHandler函数的Ctrl参数
    status = NtSetValueKey(
        hkey, &uni, 0, REG_DWORD, (BYTE *)&val, sizeof(ULONG));
    if (! NT_SUCCESS(status)) {
        NtClose(hkey);
        SetLastError(ERROR_SERVICE_REQUEST_TIMEOUT);
        return FALSE;
    }

    //
    // wait up for the value to disappear, this indicates the
    // service has picked up the control
    //
    // 多次循环，尝试等待Scm_Handler或Scm_HandlerEx回调函数执行完成
    for (retries = 0; retries < 40; ++retries) {

        Scm_DiscardKeyCache(ServiceName);

        status = NtQueryValueKey(
            hkey, &uni, KeyValuePartialInformation,
            &u.info, sizeof(u), &val);

        if (NT_SUCCESS(status)) {

            Sleep(500);
            continue;
        }

        break;
    }

    NtClose(hkey);

    if (status != STATUS_OBJECT_NAME_NOT_FOUND) {
        SetLastError(ERROR_SERVICE_REQUEST_TIMEOUT);
        return FALSE;
    }

    return Scm_QueryServiceStatusImpl(hService, lpServiceStatus);
}

服务查询

这些函数主要查询注册表中的信息，一些函数如下：

  • QueryServiceStatus，查询服务的状态。
  • EnumServicesStatus，枚举服务的状态。
  • GetServiceDisplayName和GetServiceKeyName，这两个函数分别用于获取服务的DisplayName信息和服务名。
  • QueryServiceConfig和QueryServiceLockStatus，这两个函数分别用于查询服务配置信息和查询SCM是否被锁定。

其他

SubscribeServiceChangeNotifications和NotifyServiceStatusChange，这两个函数都是用于监控服务或SCM的状态改变。具体用法可以见微软的MSDN文档。这里举出两个使用情况：

  • 当监控的目标是一个SCM时，可以注册一个回调函数来监控服务的创建或删除
  • 当监控的目标是一个服务时，可以注册一个回调函数来监控服务的状态改变。即ControlService执行之后，如果设置了合适的过滤条件，SubscribeServiceChangeNotifications或NotifyServiceStatusChange注册的回调函数就会被执行。

对于SubscribeServiceChangeNotifications来说，SandboxiePlus对应的hook函数并没有实质的内容，目前是一个空函数，对应的代码如下：

1
2
3
4
5
6
7
8
9
10
_FX ULONG_PTR Scm_SubscribeServiceChangeNotifications(
    ULONG_PTR Unknown1, ULONG_PTR Unknown2, ULONG_PTR Unknown3,
    ULONG_PTR Unknown4, ULONG_PTR Unknown5)
{
    //
    // fake success for new unknown function in Windows 8,
    // SubscribeServiceChangeNotifications
    //
    return 0;
}

对于NotifyServiceStatusChange来说，SandboxiePlus对应的hook函数主要逻辑：

  • 将NotifyServiceStatusChange函数的第三个参数PSERVICE_NOTIFY pNotifyBuffer形成SCM_NOTIFY_ELEM notify_elem加入到Scm_Notify_Global。
  • 创建一个新线程Scm_Notify_ThreadProc遍历Scm_Notify_Global中注册的notify_elem，每2s查询notify_elem对应的服务状态是否发生改变。如果发生改变，使用QueueUserAPC函数在当前线程增加一个Scm_Notify_ApcProc APC调用，该函数中调用注册的回调函数。

对应的源码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
_FX DWORD Scm_NotifyServiceStatusChangeW(
    SC_HANDLE hService, DWORD dwNotifyMask, void *pNotifyBuffer)
{
    WCHAR *ServiceNm;
    SCM_NOTIFY_ELEM *notify_elem;
    HANDLE handle;
    ULONG dwVersion;

    //
    // validate parameters
    //

    dwVersion = ((SERVICE_NOTIFY *)pNotifyBuffer)->dwVersion;
    if (dwVersion != 1 && dwVersion != 2) {
        SbieApi_Log(2205, L"NotifyServiceStatusChange (%d)", dwVersion);
        return ERROR_INVALID_PARAMETER;
    }

    ServiceNm = Scm_GetHandleName(hService);
    if (! ServiceNm)
        return ERROR_SERVICE_DOES_NOT_EXIST;

    //
    // look for an existing notification entry
    //

    EnterCriticalSection(Scm_Notify_CritSec);

    if (! Scm_Notify_Global) {
        Scm_Notify_Global = Dll_Alloc(sizeof(SCM_NOTIFY_GLOBAL));
        List_Init(&Scm_Notify_Global->list);
        Scm_Notify_Global->hThread = NULL;
        Scm_Notify_Global->hEvent = NULL;
    }

    notify_elem = List_Head(&Scm_Notify_Global->list);
    while (notify_elem) {
        if (notify_elem->hService == hService)
            break;
        notify_elem = List_Next(notify_elem);
    }

    if (! notify_elem) {

        //
        // open a thread handle so we can call QueueUserAPC later on
        //

        handle = OpenThread(THREAD_SET_CONTEXT, FALSE, GetCurrentThreadId());
        if (! handle) {
            ULONG LastError = GetLastError();
            LeaveCriticalSection(Scm_Notify_CritSec);
            return LastError;
        }

        //
        // create a new notification entry
        //

        notify_elem = Dll_Alloc(sizeof(SCM_NOTIFY_ELEM));
        notify_elem->hThread = handle;
        notify_elem->hService = hService;
        notify_elem->data = pNotifyBuffer;
        notify_elem->mask = dwNotifyMask;
        notify_elem->state = 0;
        notify_elem->active = TRUE;
        // 添加notify_elem到Scm_Notify_Global->list中
        List_Insert_After(&Scm_Notify_Global->list, NULL, notify_elem);
    }

    notify_elem->active = TRUE;

    //
    // start the service watcher thread if necessary
    //

    if (! Scm_Notify_Global->hEvent)
        Scm_Notify_Global->hEvent = CreateEvent(NULL, FALSE, FALSE, NULL);

    if (! Scm_Notify_Global->hThread) {
        ULONG idThread;
        // 创建一个新线程，线程函数Scm_Notify_ThreadProc
        Scm_Notify_Global->hThread = CreateThread(
                        NULL, 0, Scm_Notify_ThreadProc, NULL, 0, &idThread);
    }

    if (Scm_Notify_Global->hThread && Scm_Notify_Global->hEvent)
        SetEvent(Scm_Notify_Global->hEvent);

    LeaveCriticalSection(Scm_Notify_CritSec);

    SetLastError(0);
    return ERROR_SUCCESS;
}

Scm_Notify_ThreadProc函数的源码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
_FX ULONG Scm_Notify_ThreadProc(void *lpParameter)
{
    SCM_NOTIFY_ELEM *notify_elem;

    while (1) { // 无限循环

        //
        // loop through notify handles and look for active ones
        //

        EnterCriticalSection(Scm_Notify_CritSec);

        notify_elem = List_Head(&Scm_Notify_Global->list);
        while (notify_elem) {

            if (notify_elem->active) {
                // 处理active的notify_elem
                Scm_Notify_ThreadProc2(notify_elem);
            }

            notify_elem = List_Next(notify_elem);
        }

        LeaveCriticalSection(Scm_Notify_CritSec);

        //
        // wait two seconds, or until the event is triggered
        // to indicate that a new element was added or updated
        //

        WaitForSingleObject(Scm_Notify_Global->hEvent, 2000);
    }

    return 0;
}

_FX void Scm_Notify_ThreadProc2(SCM_NOTIFY_ELEM *notify_elem)
{
    SERVICE_QUERY_RPL *rpl = (SERVICE_QUERY_RPL *)
        Scm_QueryServiceByHandle(notify_elem->hService, TRUE, 0);

    if (rpl) {
         if (rpl->h.status == 0) {

            ULONG state = 0;
            SERVICE_STATUS_PROCESS *ss = &rpl->service_status;
            if (ss->dwCurrentState == SERVICE_STOPPED)
                state = SERVICE_NOTIFY_STOPPED;
            else if (ss->dwCurrentState == SERVICE_START_PENDING)
                state = SERVICE_NOTIFY_START_PENDING;
            else if (ss->dwCurrentState == SERVICE_STOP_PENDING)
                state = SERVICE_NOTIFY_STOP_PENDING;
            else if (ss->dwCurrentState == SERVICE_RUNNING)
                state = SERVICE_NOTIFY_RUNNING;
            else if (ss->dwCurrentState == SERVICE_CONTINUE_PENDING)
                state = SERVICE_NOTIFY_CONTINUE_PENDING;
            else if (ss->dwCurrentState == SERVICE_PAUSE_PENDING)
                state = SERVICE_NOTIFY_PAUSE_PENDING;
            else if (ss->dwCurrentState == SERVICE_PAUSED)
                state = SERVICE_NOTIFY_PAUSED;

            // 检查状态是否发生了改变
            if ((notify_elem->mask & state) != 0 &&
                                            (state != notify_elem->state)) {

                SERVICE_NOTIFY *data = notify_elem->data;

                memcpy(&data->ServiceStatus, ss,
                       sizeof(SERVICE_STATUS_PROCESS));
                data->dwNotificationStatus = ERROR_SUCCESS;

                if (data->dwVersion == 2) {
                    data->dwNotificationTriggered = state;
                    data->pszServiceNames = NULL;
                }

                notify_elem->state = state;

                notify_elem->active = FALSE;
                // 添加一个APC函数，调用注册的回调函数
                QueueUserAPC(Scm_Notify_ApcProc,
                             notify_elem->hThread, (ULONG_PTR)data);
            }
         }

         Dll_Free(rpl);
    }
}

总结

  • SandboxiePlus创建服务会在注册表(非真实主机上的注册表)"HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services"位置增加服务信息。
  • SandboxiePlus启动服务。沙盒化服务和非沙盒化服务都是由SbieSvc进程进行启动，SbieSvc接受MSGID_SERVICE_RUN类型的请求来处理的是沙盒化服务，SbieSvc接受MSGID_SERVICE_START类型的请求来处理的是沙盒化服务。服务进程启动
  • SandboxiePlus控制服务 设置服务的SBIE_ControlCode来触发Scm_StartServiceCtrlDispatcherX函数中hEvent，进而执行Scm_Handler或Scm_HandlerEx函数的调用。
  • SandboxiePlus监控服务状态的改变，不断查询注册表中状态，状态改变则增加一个APC调用到当前线程中。

最后于 1天前 被baolongshou编辑 ，原因：


更多【编程技术- SandboxiePlus Service隔离代码分析】相关视频教程：www.yxfzedu.com




相关文章推荐

记录自己的技术轨迹
文章规则：
1)：文章标题请尽量与文章内容相符
2)：严禁色情、血腥、暴力
3)：严禁发布任何形式的广告贴
4)：严禁发表关于中国的政治类话题
5)：严格遵守中国互联网法律法规
6)：有侵权,疑问可发邮件至service@yxfzedu.com
近期原创 更多

Markdown Editor

友情链接
内核结构FAQ
免责声明
课程目录
Windows内核
游戏逆向(FPS)
技术交流QQ群
342478842215039827137189196
314055665159620936
www.yxfzedu.com是一个分享游戏安全,游戏外挂与反外挂,游戏驱动保护的视频网站！
接各种驱动定制如：游戏读写驱动，软件内存保护，防止调试等功能定制。
出租读写驱动，调试驱动，无痕注入支持各种游戏。
邮箱：service@yxfzedu.com
QQ：851920120
特别说明：不接游戏数据分析，外挂编写，登陆协议等类似业务。
